Test Commands


This document refers to the Command Editor options and not JavaScript API to call a command. JavaScript API for the test case step can be viewed by clicking the label for the step. API inputs may not be named exactly the same as Command Editor fields. For example, Assignee in the Dialog box corresponds to a user in the API.

There are more than 80 commands to simplify testing and categorized into five categories below:

  • BPM: A set of commands for calling server-side components.
  • BPM Assertion : A set of commands for asserting server-side components.
  • Case: A set of commands for calling server-side components of a case.
  • Case Assertion : A set of commands for asserting server-side components of a case.
  • BA: A set of commands for calling server-side components of a business application (available on Cloud Pak for Business Automation).
  • UI: A set of commands for UI recording and actions.
  • UI assertion: A set of commands for asserting UI components.
  • Utility: A set of commands for utility methods, e.g., debug, putContext

BPM

This category of commands is for calling server-side components. There are a lot of common input fields. Below are some statements which are common for most of the commands in this category.


Common Parameters

Name Required Description
Assignee Optional When specified, the command is executed by the specified BAW user. The drop-down lists all BAW user names defined in the BAW Configuration the Test Project is connected to. More details refer to BAW Configuration/Add user to a BAW server.
Notes: Currently, all the commands are run as the “default user”, unless manually modified. If manually modified, the following commands are run as the latest modified user until modified again. If your recorded commands come from the “BPM”, “BPM Assertion”, “Case” or “Case Assertion” command category (these commands will invoke BAW REST API or Java API), you need to choose the proper assignee based on business logic. Recorded commands come from the “UI”, “UI assertion”, “Utility” command category don’t need to set an assignee for these commands. You can leave it blank or use the “default user”.
Exception Optional Checked means we are expecting to get an error for the test case. Unchecked means we are expecting to get a normal result from the test case.
Params Depend on command. JSON or XML format. If the template of parameters is rendered successfully by selecting the service, the field is required. The parameters are defaulted based on the service signature. The template of parameters includes keys of data, and you only need to fill in the value.
e.g.:
{
“variable_name”: “value”,
“variable2_name”: “value2”
}
Also, the parameter supports variables like CSV binding variables and context variables. You can use ${csv.xxxx} or ${xxx} to reference your variable value. If the variable value is a number, please remove the quote before $.
e.g.:
{
“textReader”:”${csv.instanceId}”,
“integer”:${number},
“decimal”:0,
“text”:”${mytext}”
}
Expected Output Optional Used for validating the command response. In some cases, there is a refresh button, which can be used to get default expected results. Make sure to fill out the params before clicking refresh. If refresh does not work, execute the case step without setting the expectedOutput. If passed, edit the step and click on button in the Command Editor Dialog to capture the results.
Notes: The icon will appear below the Expected Output field when the wrong Params is filled out after clicking button in the Command Editor Dialog. The error message can be obtained by hovering over the icon.
TaskName Required Drop-down lists all task names in the Process Application of the Test Project which is connected to.
Json Path Optional JSON path to a variable in the output JSON data.
Variable Name Optional Variable name to save the value that the JSON path points to. This variable can be accessed via ${variable_name} in later commands in this test case.
Comment Optional Not part of any command and can be used for documenting the test case step.

loginPortal

Log in to the BPM portal. As a result, the BPM Portal page is opened.

  • Example


loginWorkplace

Log in to the Workplace on CP4BA. As a result, the BAW Workplace page is opened.

  • Example


loginBPMoC

Log in to BPM on Cloud. As a result, the BPM on Cloud page is opened.

  • Example


openInstanceDetail

Open the current instance detail page of the BAW portal page by calling the REST API: https://[BAW Server]/ProcessPortal/launchInstanceUI?instanceId=[currentInstanceId].

  • Example


open

Open a URL.

  • Parameters

    Name Required Description
    URL Yes The URL to be opened.
  • Example


startProcess

Start a BPM process by REST API, only exposed processes are supported by default. Install the IDA Toolkit to support all processes.

  • Parameters

    Name Required Description
    Process Yes The name of the process to be started. Select from the drop-down.
    Params Depend on Process. Parameters in JSON or XML format required to start the process. Tip: when creating a test suite to test a Process by Generate Test Cases, the default parameters will be generated.
  • Example


startExternalProcess

Start an external BPM process by REST API, only exposed processes are supported, and the snapshot must be active.

  • Parameters

    Name Required Description
    Process App Yes The name of the process app. Select from the drop-down.
    Snapshot Yes The name of the snapshot. Select from the drop-down.
    Process Yes The name of the process to be started. Select from the drop-down.
    Params Depend on Process. Parameters in JSON or XML format required to start the external process.
  • Example


startHumanService

Test a Human Service in stand-alone mode.

  • Parameters

    Name Required Description
    Service Yes The name of the Human Service to be started. Select from the drop-down.
    Params Depend on Human Service. Input list in JSON or XML format required to start the Human Service. Only simple input arguments are supported.
  • Example


startExposedHeritageHumanService

Test an exposed Heritage Human Service in stand-alone mode. Be sure to expose the Heritage Human Service to the specified team.

  • Parameters

    Name Required Description
    Assignee Refer to the common input fields description. The user should belong to the team where the service was exposed.
    Service Yes The name of the Human Service to be started. Select from the drop-down.
    Params Depend on Heritage Human Service. Input list in JSON or XML format required to start the Heritage Human Service. Only simple input arguments are supported.
  • Example


startAjaxService

Start an AJAX service edited in Eclipse PD by REST API. To call services created in Web PD, use the startServiceFlow command.

  • Parameters

    Name Required Description
    Exception Optional Checked means we are expecting to get an error for the test case. Unchecked means we are expecting to get a normal result from the test case. Refer to the common input fields description.
    Service Yes The name of the AJAX Service to be started. Select from the drop-down.
    Params Depend on Heritage AJAX Service. Input list in JSON or XML format required to start the Heritage AJAX Service.
    Expected Output If Exception is not checked, it is mandatory. Otherwise, you need to keep it empty. Expected service output in JSON. Tip: Click on button in the Command Editor Dialog to capture the results.
  • Example

    Unchecked Exception:

    Checked Exception:


startSystemService

Start a Generic or Integration service edited in Eclipse PD. Please install the IDA Toolkit to support the system service. To call services created in Web PD, use the startServiceFlow command.

  • Parameters

    Name Required Description
    Exception Optional Checked means we are expecting to get an error for the test case. Unchecked means we are expecting to get a normal result from the test case. Refer to the common input fields description.
    Service Yes The name of the System Service to be started. Select from the drop-down.
    Params Depend on System Service. Input list in JSON or XML format required to start the System Service.
    Expected Output If Exception is not checked, it is mandatory. Otherwise, you need to keep it empty. Expected service output in JSON. Tip: Click on button in the Command Editor Dialog to capture the results.
  • Example

    Unchecked Exception:

    Checked Exception:


executeSQL

Perform an SQL Query by REST API, please install the BPM Testing Asset Toolkit to support SQL Query.

  • Parameters

    Name Required Description
    SQL Required SQL script.
    Max Rows Optional Max rows of expected output. If empty, IDA will retrieve all rows.
    Data Source Required Data source JNDI name as defined in the target BAW environment. The default dataSourceName is jdbc/TeamWorksDB.
    Expected Output Required Expected output in JSON format. Tip: Click on button in the Command Editor Dialog to capture the results.
    Expected Rows Optional Expected rows of results.
  • Example


startUCA

Start a message UCA.

  • Parameters

    Name Required Description
    UCA Required Name of the message UCA, select from the drop-down.
    Params Depend on UCA. UCA inputs.
  • Example


startServiceFlow

Start a Service Flow by REST API developed in Web PD, please install the BPM Testing Asset Toolkit to support the system service.

  • Parameters

    Name Required Description
    Exception Optional Checked means we are expecting to get an error for the test case. Unchecked means we are expecting to get a normal result from the test case. Refer to the common input fields description.
    Service Yes The name of the Service Flow to be started. Select from the drop-down.
    Params Depend on Service Flow. Input list in JSON or XML format required to start the Service Flow.
    Expected Output If Exception is not checked, it is mandatory. Otherwise, you need to keep it empty. Expected service output in JSON. Tip: Click on button in the Command Editor Dialog to capture the results.
  • Example


startAdHoc

Start an AdHoc event (deprecated) for stand-alone activities to use runAdHocActivity.

  • Parameters

    Name Required Description
    Ad Hoc Name Required Ad Hoc name, select from the drop-down.
  • Example


runAdHocActivity

Start an AdHoc Activity, can be executed in the context of a business process instance. Can be added to a test case created based on a process or BPD.

  • Parameters

    Name Required Description
    Ad Hoc Activity Name Required Ad Hoc Activity Name, select from the drop-down.
  • Example


runTaskByDisplayName

Run a task by display name.

  • Parameters

    Name Required Description
    Task Name Required Task Name, select from the drop-down.
    byTaskOwner Optional Checked means the task owner will run this task. Unchecked indicates that the assigned user will run the task.
  • Example


runTaskByActivityName

Run a task by Activity name. Can only be used in the context of process instance execution.

  • Parameters

    Name Required Description
    Task Name Required Task Name, select from the drop-down.
    byTaskOwner Optional Checked means the task owner will run this task. Unchecked indicates that the assigned user will run the task.
  • Example

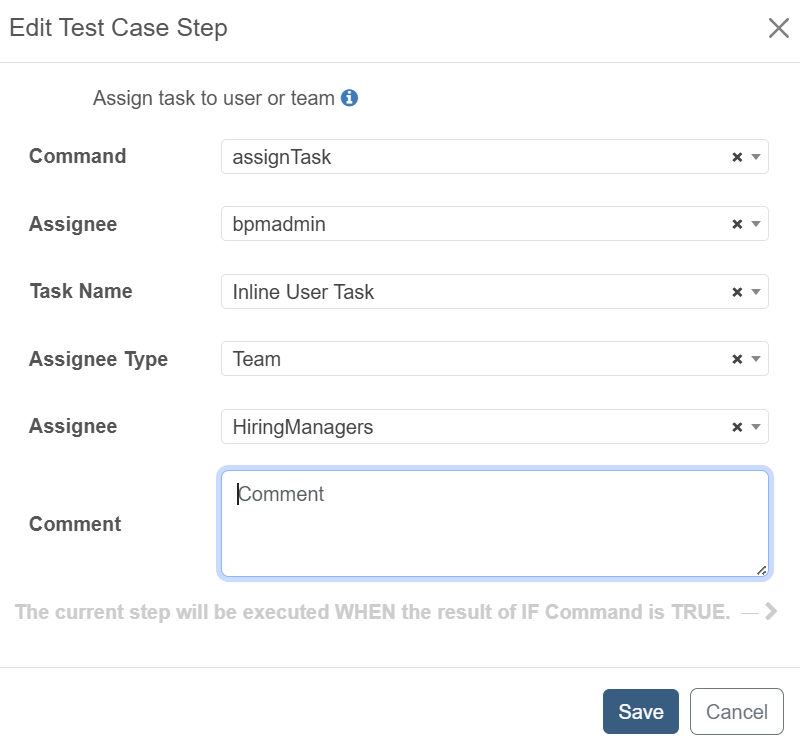

assignTask

Assign a task to a specific user. Can only be used in the context of process instance execution.

  • Parameters

    Name Required Description
    Task Name Required The name of the task assigned to the specific user. Select from the drop-down.
    To User Required Select from the drop-down list of users defined in IDA/BAW Configuration for the target BAW server.
  • Example


claimTask

Claim a task.

  • Parameters

    Name Required Description
    Task Name Required The name of the task. Select from the drop-down.
  • Example


finishTask

Complete a given task and set the output for the task. Can only be used in the context of process instance execution.

  • Parameters

    Name Required Description
    Task Name Required The name of the task. Select from the drop-down.
    Output Depend on Task output, JSON format. Set this value to the output of the task.
  • Example


addInstanceId

Add the process instance ID to the context. Use this command if the process was not started as part of the current use case.

  • Parameters

    Name Required Description
    Instance ID Required Instance ID of the process. Can be found in Web PD or in Eclipse PD.
  • Example


getTaskIdByName

Get the task ID by name.

  • Parameters

    Name Required Description
    Task Name Required The name of the task. Select from the drop-down.
  • Example


getLatestInstanceIdByProcess

Get the latest process instance ID by process name and add it to the context.

  • Parameters

    Name Required Description
    Process Name Required Process name to get the latest instance. Select from the drop-down.
  • Example


getInstanceIdByInstanceName

Get the process instance ID by process name and instance name.

  • Parameters

    Name Required Description
    Process Name Required Process name to get the instance. Select from the drop-down.
    Instance Name Required Instance name of the instance ID.
  • Example


getInstanceIdByTaskName

Get the process instance ID by process name and task subject name.

  • Parameters

    Name Required Description
    Process Name Required Process name to get the instance. Select from the drop-down.
    Task Name Required Task name.
  • Example


getInstanceIdByTaskUrl

Get the process instance ID by the task ID in the URL. Use it by: ${context.currentInstanceId}.

  • Example


getInstanceIdByBusinessData

Get the process instance ID by process name and business data.

  • Parameters

    Name Required Description
    Process Name Required Process name to get the instance. Select from the drop-down.
    Business Data Alias Required Business data alias name.
    Business Data Value Required Actual data value.
  • Example


fireTimer

Fire a timer for the current instance.

  • Parameters

    Name Required Description
    Token Required Timer name, selected from the drop-down.
  • Example


startRestApi

Assert the REST API result.

  • Parameters

    Name Required Description
    API Name Required REST API name, selected from the drop-down.
    Supported REST API list:
    Organization(Groups)
    Organization(Users)
    Process(ProcessQueryEntityList)
    Search(ExecuteQuery)
    Task(TaskQueryEntityList)
    Params Required Parameters of the REST API. Refer to https://[BAW-Server-URL]/bpmrest-ui/BPMRestAPITester/
    Expected Value Required The expected response of the REST API.
  • Example


startQuery

Performs a custom search.

  • Parameters

    Name Required Description
    Columns Required Valid column names are taskId, instanceId, bpdName, taskSubject, taskArrived, taskStarted, taskFinished, e.g.: taskId,instanceId.
    Condition Optional Query condition: "<field>|<value>" or "<field>|<op>|<value>"
    Sort Optional Name of the primary sort column
    Second Sort Optional Name of the secondary sort column
    Organization Optional A string indicating how the results should be organized. Valid values are byTask and byInstance. The default value is byInstance.
    Size Optional Specifies the maximum number of entities to be returned. If a number is not specified, the default size defined for the query will be used.
    Offset Optional Specifies the number of entities to be skipped. Offset 0 refers to the first entity from the result set. If this parameter is not specified, the default value of 0 is used.
    Filter By Current User Optional Filter By Current User
    Result Optional The query result. Tip: Click on button in the Command Editor Dialog to capture the results.
    Json Path Optional Use the JSON path to extract the output value or sub-JSON
    Variable Name Optional Save Output into memory
  • Example


WaitProcessInstanceStatus

Wait for the process instance status to update. Fail when timeout.

  • Parameters

    Name Required Description
    Instance Status Required Process instance status to check
    Timeout(seconds) Required Wait timeout
  • Example


GetProcessInstanceData

Get process instance data.

  • Parameters

    Name Required Description
    Json Path Optional Use the JSON path to extract the instance data variable or sub-JSON
    Variable Name Optional Save the instance data variable or sub-JSON into memory
  • Example


BPM Assertion

This category is for asserting server-side components.


Common Parameters

Name Required Description
Assignee Optional When specified, the command is executed by the specified BAW user. The drop-down lists all BAW user names defined in the BAW Configuration the Test Project is connected to. More details refer to BAW Configuration/Add user to a BAW server.
Notes: Currently, all the commands are run as the “default user”, unless manually modified. If manually modified, the following commands are run as the latest modified user until modified again. If your recorded commands come from the “BPM”, “BPM Assertion”, “Case” or “Case Assertion” command category (these commands will invoke BAW REST API or Java API), you need to choose the proper assignee based on business logic. Recorded commands come from the “UI”, “UI assertion”, “Utility” command category don’t need to set an assignee for these commands. You can leave it blank or use the “default user”.
TaskName Required Name of the task that needs to be asserted. The drop-down lists all task names in the Process Application of the Test Project which is connected to.
Comment Optional Not part of any command and can be used for documenting the test case step.

assertProcessInstanceStatus

Check the current process instance status.

  • Parameters

    Name Required Description
    Instance Status Required Expected status of the current process instance.
    Possible values:
    Active
    Completed
    Failed
    Terminated
    Suspended
  • Example


assertProcessInstanceData

Assert the data of the current process instance. Can only be used in the context of process instance execution.

  • Parameters

    Name Required Description
    Expected Value Required JSON object, expected value of the data.
    Notes:
    Before adding this step, run the test case and look at the report. In the Process Instance section, click on the click to show full data link.

    Copy the shown JSON into the Expected Value as the data template. Then change the value as you need. If your data has auto-generated fields, like current dates, instance IDs or some other unique identifiers, they have to be removed from the JSON.
  • Example


assertTaskAssignmentByUser

Check that the correct user is assigned (claimed) to the task. Can only be used in the context of process instance execution.

  • Example


assertTaskStatus

Check the status of a task for the current process instance.

  • Parameters

    Name Required Description
    Task Status Required Expected status of the task.
    Valid task status values:
    Received
    Closed
  • Example


assertNextTaskName

Check that the task is received.

  • Example


assertTaskNotGenerated

Check that the task is not generated.

  • Example


assertTaskData

Check the task data of the current process instance. It checks the variables saved in the BPM Task execution context. Use UI Assertions to check the page contents during the coach execution.

  • Parameters

    Name Required Description
    Expected Value Required Expected value of the data.
    Notes:
    Before adding this step, run the test case and look at the report. In the Task Data section, click on the click to show full data link.

    Copy the JSON value into the Expected Value as the data template. Then change the value as you need. If your data has auto-generated fields, like current dates, instance IDs or some other unique identifiers, they have to be removed from the JSON.
  • Example


assertServiceData

Check the current service data.

  • Parameters

    Name Required Description
    Expected Value Required Expected value of the data.
    Notes:
    Before adding this step, run the test case and look at the report. In the Service Data section, click on the click to show full data link.

    Copy the JSON value into the Expected Value as the data template. Then change the value as you need. If your data has auto-generated fields, like current dates, instance IDs or some other unique identifiers, they have to be removed from the JSON.
  • Example


Case

This category of commands is for calling server-side components of a case. There are a lot of common input fields. Below are some statements which are common for most of the commands in this category.


Common Parameters

Name Required Description
Assignee Optional When specified, the command is executed by the specified BAW user. Drop down lists all BAW user names defined in the BAW Configuration the Test Project is connected to. More details refer to BAW Configuration/Add user to a BAW server.
Notes: Currently, all the commands are run as the “default user”, unless manually modified. If manually modified, the following commands are run as the latest modified user until modified again. If your recorded commands come from the “BPM”, “BPM Assertion”, “Case” or “Case Assertion” command category (these commands will invoke BAW rest api or Java api), you need to choose the proper assignee based on business logic. Recorded commands that come from the “UI”, “UI assertion”, “Utility” command category don’t need to set an assignee for these commands. You can leave it blank or use the “default user”.
Exception Optional Checked means we are expecting to get an error for the test case. Unchecked means we are expecting to get a normal result from the test case.
Params Depend on command. JSON or XML format. If the template of parameters is rendered successfully by selecting the service, the field is required. The parameters are defaulted based on the service signature. The template of parameters includes keys of data, and you only need to fill in the value.
e.g:
{
“variable_name”: “value”,
“variable2_name”: “value2”
}
Also, the parameter supports variables like CSV binding variables and context variables. You can use ${csv.xxxx} or ${xxx} to reference your variable value. If the variable value is a number, please remove the quote before $.
e.g:
{
“textReader”:”${csv.instanceId}”,
“integer”:${number},
“decimal”:0,
“text”:”${mytext}”
}
Expected Output Optional Used for validating the command response. In some cases, there is a refresh button, which can be used to get default expected results. Make sure to fill out the params before clicking refresh. If refresh does not work, execute the case step without setting the expectedOutput. If passed, edit the step and click on button in the Command Editor Dialog to capture the results.
Notes: The icon will appear below the Expected Output field when the wrong Params is filled out after clicking the button in the Command Editor Dialog. The error message can be obtained by hovering over the icon.
Comment Optional Not part of any command and can be used for documenting the test case step.

loginCaseClient

Login Case Client. As a result, the Case Client page is opened.

  • Parameters

    Name Required Description
    Solution Required The case solution
  • Example


addCase

Add a case based on the solution case type.

  • Parameters

    Name Required Description
    Case Type Required The current case type name
    Params Required The initial case data
  • Example


addCaseFolderId

Add a case folder id to the context, use it by: ${context.currentCaseFolderId}.

  • Parameters

    Name Required Description
    Case Folder ID Required The case folder id
  • Example


addActivity

Add a discretionary activity based on the activity type.

  • Parameters

    Name Required Description
    Activity Type Name Required The activity type name
    Activity Name Required The custom activity name
  • Example


updateCaseData

Update the current case data.

  • Parameters

    Name Required Description
    Case Type Required The current case type name
    Params Required The updated case data
  • Example


runActivityByName

Run a case solution activity by name.

  • Parameters

    Name Required Description
    Activity Name Required The case solution activity name of the current case type
    Task Name Required The task name of the selected activity.
    byTaskOwner Optional(BPMN) Checked means the task owner will run this task. Unchecked indicates that the assigned user will run the task.
  • Example


startManualActivity

Start a manual activity.

  • Parameters

    Name Required Description
    Manual Activity Name Required The manual activity name of the current case type
  • Example


Case Assertion

This category is for asserting server-side components of a case.


Common Parameters

Name Required Description
Assignee Optional When specified, the command is executed by the specified BAW user. Drop down lists all BAW user names defined in the BAW Configuration the Test Project is connected to. More details refer to BAW Configuration/Add user to a BAW server.
Notes: Currently, all the commands are run as the “default user”, unless manually modified. If manually modified, the following commands are run as the latest modified user until modified again. If your recorded commands come from the “BPM”, “BPM Assertion”, “Case” or “Case Assertion” command category (these commands will invoke BAW rest api or Java api), you need to choose the proper assignee based on business logic. Recorded commands that come from the “UI”, “UI assertion”, “Utility” command category don’t need to set an assignee for these commands. You can leave it blank or use the “default user”.
Comment Optional Not part of any command and can be used for documenting the test case step.

assertCaseState

Check the current case state.

  • Parameters

    Name Required Description
    Case State Required Expected state of the current case.
    Possible values:
    Complete
    Failed
    Initializing
    New
    Working
  • Example


assertActivityState

Check the activity state of the current case.

  • Parameters

    Name Required Description
    Activity Name Required The name of the activity.
    Activity State Required Expected state of the case activity.
    Possible values:
    Waiting
    Ready
    Started
    Completed
    Canceled
    Activity Is Required Required Expected required state of the case activity.
    Possible values:
    True
    False
    Activity Is Disabled Required Expected disabled state of the case activity.
    Possible values:
    True
    False
  • Example


BA

This category of commands is for calling server-side components of a business application (available on Cloud Pak for Business Automation). There are some common input fields. Below are some statements which are common for most of the commands in this category.


Common Parameters

Name Required Description
Assignee Optional When specified, the command is executed by the specified BAW user. Drop down lists all BAW user names defined in the BAW Configuration the Test Project is connected to. More details refer to BAW Configuration/Add user to a BAW server.
Notes: Currently, all the commands are run as the “default user”, unless manually modified. If manually modified, the following commands are run as the latest modified user until modified again. If your recorded commands come from the “BPM”, “BPM Assertion”, “Case” or “Case Assertion” command category (these commands will invoke BAW rest api or Java api), you need to choose the proper assignee based on business logic. Recorded commands that come from the “UI”, “UI assertion”, “Utility” command category don’t need to set an assignee for these commands. You can leave it blank or use the “default user”.
Comment Optional Not part of any command and can be used for documenting the test case step.

startBusinessApplication

Start the business application.

  • Parameters

    Name Required Description
    Business Application Required The unique name of the business application.
  • Example

    ___

UI

In most cases, the UI commands are recorded using the IDA plugin. If you find a need to add a command manually, for example, a validation command, look at the recorded command for the element and copy the location information from it.
e.g: Any one or combination of the recorded values can be used to identify the control: Control ID, Element ID, or XPATH. If the Label is unique on the page, it can be used as well. Enough location arguments are required to uniquely identify an element on the page. IDA cycles through available ids until it finds the element. For example, if you recorded a select step and later moved the control around on the page, the Control ID and XPATH are probably different from the recorded step, but the Element ID is still the same.

In most cases, the UI commands are recorded and displayed immediately in the IDA recorder. Commands below are only displayed after recording of some other control as the command value cannot be set immediately:

  • bpmFileDropzone
  • bpmFileUploader
  • coachControl

Common Parameters

Name Required Description
Assignee Optional When specified, the command is executed by the specified BAW user. Drop down lists all BAW user names defined in the BAW Configuration the Test Project is connected to. More details refer to BAW Configuration/Add user to a BAW server.
Notes: Currently, all the commands are run as the “default user”, unless manually modified. If manually modified, the following commands are run as the latest modified user until modified again. If your recorded commands come from the “BPM”, “BPM Assertion”, “Case” or “Case Assertion” command category (these commands will invoke BAW rest api or Java api), you need to choose the proper assignee based on business logic. Recorded commands that come from the “UI”, “UI assertion”, “Utility” command category don’t need to set an assignee for these commands. You can leave it blank or use the “default user”.
Value Optional, fields Value, Control ID, Label, Element ID, Element CSS and XPATH must be filled in at least one of them. The value of the control.
Control ID Optional, fields Value, Control ID, Label, Element ID, Element CSS and XPATH must be filled in at least one of them. The ID of the control. Control ID is the PATH control IDs leading to the selected control id.
Label Optional, fields Value, Control ID, Label, Element ID, Element CSS and XPATH must be filled in at least one of them. The label of the control.
Element ID Optional, fields Value, Control ID, Label, Element ID, Element CSS and XPATH must be filled in at least one of them. The ID of the element.
Element CSS Optional, fields Value, Control ID, Label, Element ID, Element CSS and XPATH must be filled in at least one of them. The CSS of the element.
XPATH Optional, fields Value, Control ID, Label, Element ID, Element CSS and XPATH must be filled in at least one of them. The xpath of the control.
Comment Optional Not part of any command and can be used for documenting the test case step.

Notes: The element is first obtained through the Control ID. If it fails, the label, Element ID, and Element CSS are then used in turn. Finally, the XPATH is used. If successful, the rest will not be used.


bpmFileDropzone

Upload a file to the BAW server by using the Dropzone control.

  • Parameters

    Name Required Description
    Value Required Name of the BPM file.
    Control ID Required Control ID of the BPM file drop zone.
  • Example


bpmFileUploader

BPM file uploader. UI.bpmFileUploader can’t be replayed on the IDA Plugin due to browser security issues, but this command can work on the Selenium Grid. So you can record the file upload commands by the IDA Plugin, but replay them on the Selenium Grid.

  • Parameters

    Name Required Description
    Value Required Name of the BPM file.
    Control ID Required The control id of the BPM file that needs to be uploaded.
  • Example


checkbox

Set the value of the checkbox control.
  • Parameters

    Name Required Description
    Value Required The value of the checkbox to operate on.
    Select Options Required Checkbox operation, Select or Unselect. Select: to check the checkbox. Unselect: to clear the checkbox.
  • Example


click

Click an element by id, CSS, or xpath. Notes: The BPM UI toolkit has an id on a button, but Coach v8 and BP3 do not. Thus, the latter two can only be identified by XPATH. Moving the coach view around the page may change its xpath and break the test case.

  • Parameters

    Name Required Description
    Type Optional Link or Button.
    Trigger Event Optional The JavaScript event triggered by the click.
  • Example


coachControl

Set the value of the coach control. This is a generic setter. The value should match the selected control type.

  • Parameters

    Name Required Description
    Value Type Optional Select the type from the drop-down.
    Default Value Optional Default value of the control.
  • Example

    ___

confirmOK

Click the OK button for window.confirm and return true. This isn’t supported in the IDA plugin. It needs to be added to the test case manually when used and can work fine in Selenium.

  • Example


confirmCancel

Click the Cancel button for window.confirm and return false. This isn’t supported in the IDA plugin. It needs to be added to the test case manually when used and can work fine in Selenium.

  • Example


doubleClick

Double-click an element by id, CSS, or xpath. This is similar to click. It needs to be added to the test case manually when used.

  • Example


file

Upload a file. UI.file can’t be replayed on the IDA Plugin due to browser security issues, but this command can work on the Selenium Grid. So you can record the file upload commands by the IDA Plugin, but replay them on the Selenium Grid.

  • Parameters

    Name Required Description
    Value Required The filename that needs to be uploaded.
  • Example


close

Close the currently opened browser.

  • Example


radio

Set the value of the radio control.

  • Parameters

    Name Required Description
    Value Required The value of the radio to select. The value should be the LABEL on the CV control.
    e.g:

    The value should be set to Make a selection.
  • Example


saveCoachControl

Put the control value into a key.
Tip:
a) record a step to set the value of the control;
b) edit the recorded step in the Command Editor and change the command to saveCoachControl;
c) set the Key.
If the control you try to save is read-only, record any other controls which are at the same level (e.g., in the container). Modify the Control ID path to match the control you are trying to save.

  • Parameters

    Name Required Description
    Key Required Name of a variable, which can later be referenced as ${key} in a value field of any command.
    Property Optional When the control binds a complex object, you can get the value from the complex object by property.
    e.g.:
    bindingObject.value
  • Example


saveText

Save text into the context. Can put the output text, single select, and input value to a key.

  • Parameters

    Name Required Description
    Key Required Name of a variable, which can later be referenced as ${key} in a value field of any command.
  • Example


select

Set the value of the select (drop-down) control. The value is a JSON list of selected display values for this Select or Multi-Select CV.
e.g.:["Selected value1","Selected value2"]

  • Example


selectWindow

Select a window by window information.

  • Parameters

    Name Required Description
    Info Required Window information.
  • Example


text

Set the value of any control, which UI accepts textual input. Examples: input text CV, Integer CV, Date Picker. This event is captured when the control loses focus. So it is possible for some controls like Date Picker to record two steps. One for an empty value and the other for the actual value. This is because the first empty data is captured when the mouse focus moves from the control to the Date select popup. Users can remove the first recorded case step or just keep them as-is.

  • Example


waitElement

Wait for an element to be visible/hidden/editable/read-only until the timeout. Fail when the timeout is reached.

  • Parameters

    Name Required Description
    Type Required Select the element type from the drop-down. Visible, Hidden, Editable, and Readonly.
    Timeout Optional The maximum time to wait for the element. If empty, use engine-config.wait-timeout set on ida.properties.
  • Example



waitTextPresent

Wait for a text to be displayed until the timeout. Fail when the timeout is reached.

  • Parameters

    Name Required Description
    Text Required Text waiting to be displayed on the page.
    Timeout Optional The maximum time to wait for the element. If empty, use engine-config.wait-timeout set on ida.properties.
  • Example


clickActivityFromPortal

Click an activity from the portal.

  • Parameters

    Name Required Description
    Activity Required The activity name
    Process Optional The process name
    Track Optional The track name
  • Example


UI Assertion

Record a command to populate the field you want to assert. Then edit the generated test case step and change the command to assert. The edit would pick up matching fields from the recorded command.


Common Parameters

Name Required Description
Assignee Optional When specified, the command is executed by the specified BAW user. Drop down lists all BAW user names defined in the BAW Configuration the Test Project is connected to. More details refer to BAW Configuration/Add user to a BAW server.
Notes: Currently, all the commands are run as the “default user”, unless manually modified. If manually modified, the following commands are run as the latest modified user until modified again. If your recorded commands come from the “BPM”, “BPM Assertion”, “Case” or “Case Assertion” command category (these commands will invoke BAW rest api or Java api), you need to choose the proper assignee based on business logic. Recorded commands that come from the “UI”, “UI assertion”, “Utility” command category don’t need to set an assignee for these commands. You can leave it blank or use the “default user”.
Control ID Optional, fields Value, Control ID, Label, Element ID, Element CSS and XPATH must be filled in at least one of them. The ID of the control. Control ID is the PATH control IDs leading to the selected control id.
Label Optional, fields Value, Control ID, Label, Element ID, Element CSS and XPATH must be filled in at least one of them. The label of the control.
Element ID Optional, fields Value, Control ID, Label, Element ID, Element CSS and XPATH must be filled in at least one of them. The ID of the element.
Element CSS Optional, fields Value, Control ID, Label, Element ID, Element CSS and XPATH must be filled in at least one of them. The CSS of the element.
XPATH Optional, fields Value, Control ID, Label, Element ID, Element CSS and XPATH must be filled in at least one of them. The xpath of the control.
Expected Value Required The expected value of the control
Comment Optional Not part of any command and can be used for documenting the test case step.

Notes: The element is first obtained through the Control ID. If it fails, the label, Element ID, and Element CSS are then used in turn. Finally, the XPATH is used. If successful, the rest will not be used.


assertButtons

Check if the buttons are rendered or not.

  • Parameters

    Name Required Description
    Texts Required Text of the buttons that you want to render.
    e.g.:

    If you want to check that all the buttons are rendered in this form, you can fill it in like this:
    Save
    Cancel
    Notes: Texts are separated by the line break.
    Expected Visibility Required The expected visibility of the control. Select from the drop-down. Enabled, Disabled, and Hidden.
  • Example


assertCheckbox

Assert checkbox value and options.

  • Parameters

    Name Required Description
    Checked Labels Required Labels of checkboxes that are expected to be checked.
    e.g.:

    To verify the options on this page, fill in like this:
    Create Position Request CSHS
    GM Approval CSHS.
    Notes: Labels are separated by the line break.
    Expected Options Required Labels of all options that are expected to be rendered.
    e.g.: If you want to check that all the checkbox options are rendered in the figure above, you can fill in like this:
    Create Position Request CSHS
    Find Candidates CSHS
    GM Approval CSHS
    Notes: Labels are separated by the line break.
  • Example


assertCoachControl

Assert Coach Control binding value and visibility. It only supports String, Number, Date, and Boolean types of binding values now. Either the Control ID or label is required. The Control ID is the coach view Control ID, and the label is the coach view label.

  • Parameters

    Name Required Description
    Expected Value Type Required The value Type of the control, select from the drop-down. String, Number, Date(MM/dd/yyyy), and Boolean.
    Expected Visibility Required The visibility of the control. Select from the drop-down. Enabled, Disabled, and Hidden.
  • Example


assertDatePicker

Assert the date picker value.

  • Parameters

    Name Required Description
    Expected Date Required The expected date of the DatePicker
  • Example


assertElement

Assert the element value and visibility.

  • Parameters

    Name Required Description
    Expected visibility Required The visibility of the control. Select from the drop-down. Enabled, Disabled, and Hidden.
  • Example


assertInputText

Check the coach text field value. If you check the regular expression, it will use the expected value as a regular expression to match the actual value.

  • Parameters

    Name Required Description
    Expected Max Length Optional Expected maximum length of the text.
  • Example


assertOutputText

Check the coach output text value.

  • Example


assertRadio

Assert Radio value and options.

  • Parameters

    Name Required Description
    Checked Label Required Label of the radio box that is expected to be checked.
    Expected Options Required Labels of all options that are expected to be rendered. Refer to the statements of Expected Options in assertCheckbox.
  • Example


assertSelect

Assert Select value and options.

  • Parameters

    Name Required Description
    Expected Value Required The expected value of the control. If it is a multi-select, the value is separated by the line break.
    Expected Options Required Labels of select options that are expected to be rendered. Refer to the statements of Expected Options in assertCheckbox.
  • Example


assertSwitch

Assert the Switch box.

  • Example


assertTableContent

Assert the cell value of the table.

  • Parameters

    Name Required Description
    Column Name Required The name of the column where the value needs to be asserted. Column Name is used prior to Column Number to match the column.
    Column Number Optional The number of the column where the value needs to be asserted. Required if Column Name can not be specified.
    Row Number Required The number of the row where the value needs to be validated.
    Expected value Required The cell value that needs to be checked.
  • Example


assertTableRows

Assert the total number of rows in the table.

  • Parameters

    Name Required Description
    Expected Rows Required The expected total number of rows in the table.
  • Example


assertTextarea

Assert the textarea value.

  • Example


assertTextNotPresent

Assert that the text does not appear on the UI.

  • Parameters

    Name Required Description
    Text Required The text that is not expected to appear on the UI.
  • Example


assertTextPresent

Assert that the text appears on the UI.

  • Parameters

    Name Required Description
    Text Required The text that is expected to appear on the UI.
  • Example


assertValidationPassed

Check whether the coach page has passed the validation or not.

  • Example


Utility

This category provides utility commands.


Name Required Description
Assignee Optional When specified, the command is executed by the specified BAW user. The drop-down lists all BAW user names defined in the BAW Configuration the Test Project is connected to. More details refer to BAW Configuration/Add user to a BAW server.
Notes: Currently, all the commands are run as the “default user”, unless manually modified. If manually modified, the following commands are run as the latest modified user until modified again. If your recorded commands come from the “BPM”, “BPM Assertion”, “Case” or “Case Assertion” command category (these commands will invoke BAW rest api or Java api), you need to choose the proper assignee based on business logic. Recorded commands that come from the “UI”, “UI assertion”, “Utility” command category don’t need to set an assignee for these commands. You can leave it blank or use the “default user”.
Comment Optional Not part of any command and can be used for documenting the test case step.

addContext

Append another value to this key.

  • Parameters

    Name Required Description
    Key Required Name of the key.
    Value Required Value that needs to be appended.
  • Example


dateString

Generate a date string before/after a number of days from today. If the key is not specified, then the default key is “DATE_STRING”. You can use the date string by ${context.DATE_STRING}.

  • Parameters

    Name Required Description
    Key Optional Name of the key. Default is DATE_STRING.
    Days Optional The number of days from the current date that you want to convert to a string. A negative number of days means before today, while a positive number of days means after today.
    e.g.: -1 means generating a string of the date of yesterday. Default is 0.
    Format Optional Format of the date. Default is MM/dd/YYYY.
  • Example


debug

Command for debugging, recording of the case will stop at this step.

  • Parameters

    Name Required Description
    Log Optional Log text will be shown in the console.

putContext

Put a new key-value pair into the context.

  • Parameters

    Name Required Description
    Key Required Name of the key.
    Value Required Value that needs to be put into the context.

wait

Wait for a specified number of seconds.

  • Parameters

    Name Required Description
    Time Required The number of seconds to wait.

randomString

Generate a random string of a specified length with a key.

  • Parameters

    Name Required Description
    Key Optional Key name for the generated random string, default value is “RANDOM_STRING”.
    Length Required Length of the generated random string.
  • Example

    No key name, just use the default value “RANDOM_STRING”.

    Use a key name, e.g., SKey1.


randomNumber

Generate a random number of a specified length with a key.

  • Parameters

    Name Required Description
    Key Optional Key name for the generated random number, default value is “RANDOM_NUMBER”.
    Length Required Length of the generated random number.
  • Example

    No key name, just use the default value “RANDOM_NUMBER”.

    Use a key name, e.g., Key1.
